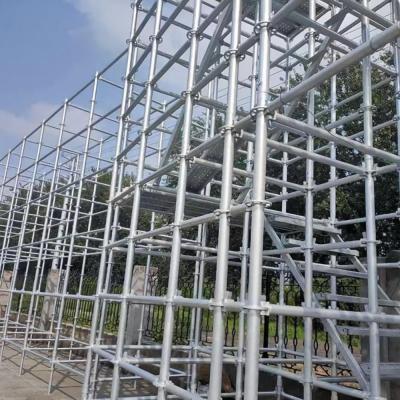

Product Overview
Our Ring-lock Scaffolding System represents the next generation of modular support solutions, combining the advantages of traditional cup-lock and frame scaffolding systems. Its core innovation lies in the rosette node design, which uses wedge-lock pins for tool‑free, bolt‑less connection - a simple hammer tap securely locks each joint, significantly accelerating construction timelines while reducing labour costs.
Manufactured from high‑grade steel (Q345, Q235) and hot‑dip galvanised for superior corrosion resistance, the system delivers exceptional load‑bearing capacity, durability, and structural stability. It provides a safe, efficient, and adaptable working platform for a wide range of applications - including high‑rise building construction, bridge cast‑in‑place supports, industrial facility maintenance, and event stage erection.
Core Product Advantages
Wedge‑lock connection with a simple hammer - assembly speed is 3‑5 times faster than traditional scaffolding, significantly saving time and labour costs.
Made of high‑grade Q345/Q235 steel; reinforced configuration supports up to 500‑600 kg/m², suitable for high‑rise buildings, bridges, and heavy‑duty industrial projects.
Rosette node allows connection in up to 8 directions, easily adapting to right‑angled, curved, or irregular structures; modular design meets any spatial requirement.
Wedge‑lock self‑locking design prevents loosening, offering excellent overall stability; compatible with guardrails, steel planks and other safety accessories for comprehensive worker protection.
All components are hot‑dip galvanised for outstanding corrosion resistance, with a service life of 7+ years even in harsh outdoor environments, significantly reducing maintenance and replacement costs.
6. High Reusability
Standardised modular design enables 80% of components to be reused across different projects, aligning with sustainable development principles and effectively reducing long‑term material costs.
Technical Parameters
| Parameter | Specification |
|---|---|
| System Series | Φ48 series / Φ60 series |
| Standard Tube Material | Q345 steel (Φ48×3.2mm / Φ60×3.25mm) |
| Ledger Material | Q235 steel (Φ48×2.5mm) |
| Rosette Material | Cast steel / pressed steel (Q345, 10mm thickness) |
| Surface Treatment | Hot‑dip galvanised, electro‑galvanised, painted, or self‑colour |
| Rosette Spacing | Welded every 0.5m or 1.0m on standards |
| Max. Scaffold Height | Up to 100 metres (depending on configuration) |
| Load‑Bearing Capacity | Up to 500‑600 kg/m² with reinforced components |

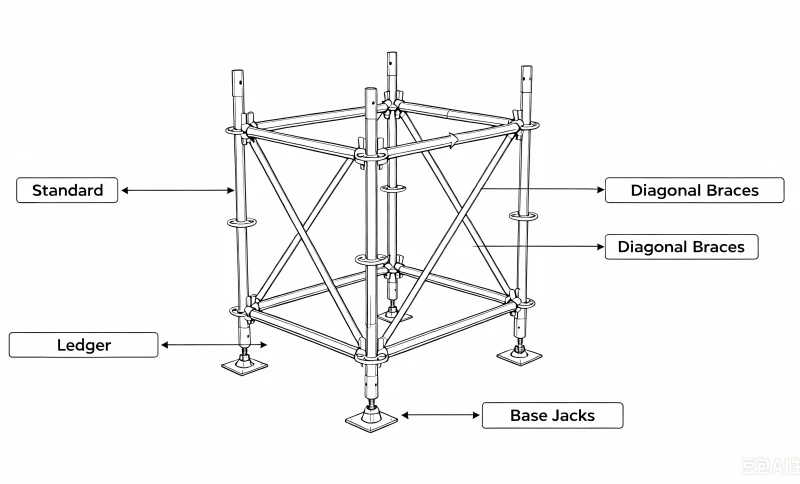

Product Structure and Components
The system comprises the following precision‑engineered components:
-
Standards (Vertical Posts) - Main load‑bearing members made from Q345 steel tubes, with rosettes welded at regular intervals for horizontal and diagonal connections.
-
Ledgers (Horizontal Members) - Connect to the rosettes on standards via forged connector ends, providing structural bracing and support for decking.
-
Diagonal Braces - Include vertical and horizontal braces to enhance lateral stability and overall rigidity.
-
Base Jacks - Including adjustable base jacks and fixed base jacks, used to support the entire scaffolding system; height can be adjusted to adapt to different ground conditions.
-
Other Accessories - Steel planks, staircases, guardrails, U‑head jacks, etc., can be configured according to project requirements to provide a safe and convenient working environment for construction workers.
The rosette node allows connection in up to eight directions, offering exceptional flexibility to adapt to complex building geometries - including right‑angled, curved, or irregular shapes.
Application Scenarios

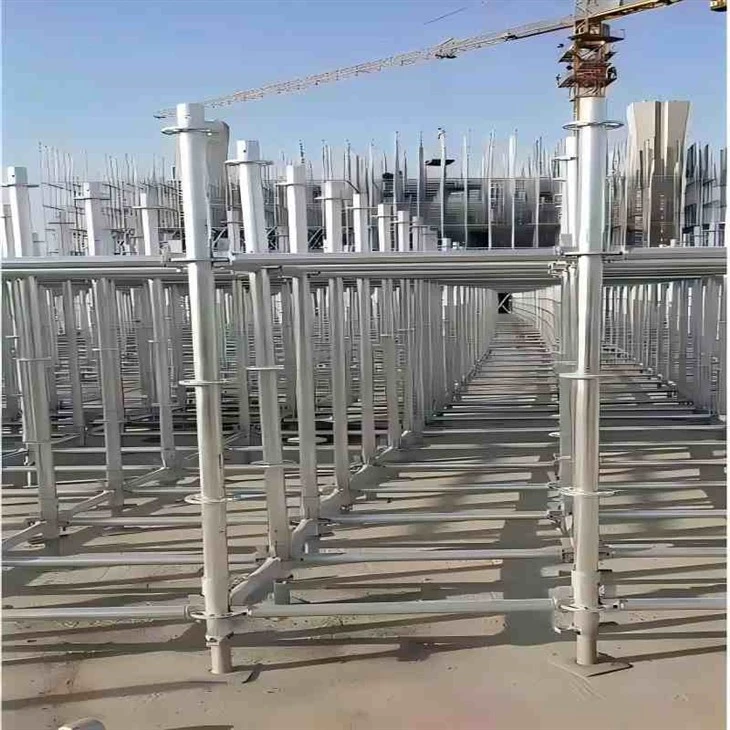

Ring-lock Scaffolding System
Thanks to its high load capacity, rapid assembly, and strong adaptability, the Ring-lock Scaffolding System is widely used in the following fields:
Building Construction
Widely used as external wall scaffolding, interior decoration working platforms, and formwork support systems in high‑rise buildings. The system provides a safe and reliable working environment at height, while its rapid assembly and dismantling features significantly shorten the main structure construction cycle.
Bridge and Tunnel Engineering
Excellent performance in cast‑in‑place box girder supports, auxiliary brackets for cantilever construction, and tunnel arch supports. With its high load capacity and outstanding stability, the system meets the heavy‑load and complex spatial support requirements of bridge and tunnel projects.
Industrial Facility Maintenance
Ideal for equipment installation, maintenance, repair, and pipe support erection in industrial facilities such as factories, power plants, mines, and refineries. The system can quickly build customised working platforms in confined spaces, meeting the high demands for safety and flexibility in industrial environments.
Commercial and Public Facilities
Extensively used in interior and exterior decoration, curtain wall installation, and suspended ceiling construction of large public buildings such as shopping malls, stadiums, exhibition halls, airports, and subway stations. The system features a neat appearance and flexible layout, ensuring construction safety without compromising interior aesthetics or pedestrian access.
Stage and Event Construction
Ideal for rapid erection of stage trusses, lighting rigs, grandstands, and spectator barriers for concerts, sports events, auto shows, and festivals. The system can be flexibly assembled into various shapes and heights according to stage design requirements, providing safe and stable support for performances.
Shipbuilding and Offshore Engineering
Used as temporary supports and working platforms in shipyard construction, vessel repair, and offshore platform operations. The system's strong corrosion resistance makes it suitable for humid, salt‑spray marine environments.
Performance and Reusability
✅Durability and Safety:
- All components are hot‑dip galvanised for superior corrosion resistance, ensuring a service life of 7+ years even in harsh outdoor environments.
- High‑quality Q235/Q345 steel minimises the risk of bending, cracking, or deformation under load.
- The wedge‑lock connection design enhances overall structural stability, reducing the risk of loosening or collapse.
✅Reusability:
- The modular design enables 80% of components to be reused across different projects, significantly lowering long‑term material costs.
- Standardised parts reduce maintenance frequency and replacement expenses.
✅Quality Assurance:
- Products are manufactured under strict quality control (ISO 9001:2000) and can be supplied with third‑party test reports and CE/TUV certification to facilitate customs clearance and regulatory compliance.
Procurement and Delivery Information
| Item | Details |
|---|---|
| Minimum Order Quantity (MOQ) | Negotiable based on project scale |
| Packaging | Export‑standard pallets or bulk packing; container loading optimisation available |
| Delivery Lead Time | Typically 30 days after order confirmation |
| Shipping | FOB from major Chinese ports; container consolidation services available |
| Documentation | Commercial invoice, packing list, bill of lading, certificate of origin, quality test reports |
| Customisation Support | OEM and non‑standard sizes accepted; engineering drawings and installation guides provided |
Our team offers full technical support, including project‑specific scaffold design and quantity take‑off services. Just provide your building dimensions (length, width, height) and we will deliver a scientific and cost‑effective construction plan.
Frequently Asked Questions
Q1: What is the difference between Φ48 and Φ60 series?
The Φ48 series is the standard option suitable for most building and bridge construction. The Φ60 series features thicker walls and higher load capacity, making it ideal for heavy‑duty projects and stair‑tower configurations.
Q2: How does the ring‑lock connection work?
Each ledger end has two wedge pins that insert into the rosette node on the standard. A simple hammer blow locks the wedge securely - no bolts, screws, or special tools required. This design prevents accidental pin loss and speeds assembly.
Q3: What surface treatment is best?
Hot‑dip galvanising (HDG) provides the highest corrosion resistance and is recommended for long‑term outdoor use and harsh environments. Electro‑galvanising and painting are also available for indoor or less demanding applications.
Q4: Can I get custom lengths or special components?
Yes. We offer non‑standard sizes and thicknesses to meet specific project requirements. Please contact us with your engineering drawings or specifications.
Q5: How do I ensure quality and safety compliance?
We provide comprehensive test reports and product certificates, including CE/TUV where applicable. We recommend requesting these documents during the procurement process to verify compliance with international standards.
Choosing our Ring‑lock Scaffolding System means investing in efficiency, safety, and long‑term value. Contact us today to discuss your project requirements and receive a tailored quotation.
