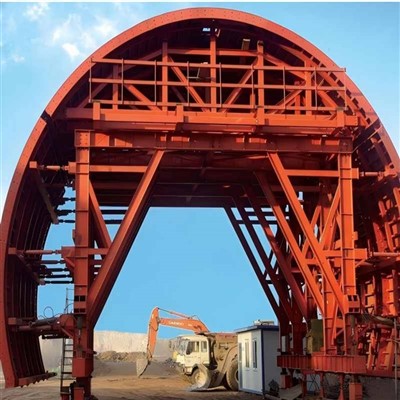

Special-shaped Tunnel Steel Formwork

Shaanxi Flourish Industrial Co., Ltd.'s Special-shaped Tunnel Steel Formwork is the industry's leading "full-category custom + complex load resistance" solution-engineered exclusively for non-standard tunnels, solving "customization inefficiency" and "uneven load vulnerability" that standard rectangular/U-shaped formworks can't address. Crafted from tunnel-optimized Q355ND steel, it offers tailor-made sections (horseshoe, oval, arched, max 12m span) with ±3mm precision, 90kN/m² uneven load resistance, and 30% faster modular assembly-trusted by global hydraulic, mountain, and special transit tunnel contractors.

1. Full-Category Custom Section Design

Differentiator: Unlike standard formworks (fixed rectangular/U-shaped), we provide 1:1 custom modeling for 12+ special shapes:

Horseshoe (for mountain tunnels: adapts to surrounding rock stress distribution)

Oval (for hydraulic tunnels: optimizes water flow and pressure resistance)

Arched (for underground heritage protection: preserves historical space)

Customization cycle is only 7-10 days (vs. 2-3 weeks for competitors), with no extra mold cost for orders over 50 sets. 3D scanning technology ensures ±3mm forming precision-critical for matching non-standard tunnel design drawings.

2. Uneven Load Resistance System

Differentiator: Standard formworks only resist uniform loads, but this special-shaped formwork uses "shape-matched variable-thickness ribs + local reinforcement plates":

Horseshoe tunnels: 16mm-thick ribs at arch shoulders (high stress area) + 12mm ribs at straight sections

Oval tunnels: 14mm-thick ribs at long-axis ends (high water pressure area)

Withstands 90kN/m² uneven load (common in mountain surrounding rock) and 40kN/m² local concentrated pressure-avoids deformation at stress concentration points (a common issue with modified standard formworks). 8-point load test confirms no damage under 120% rated load.

3. Complex-Environment Durable Coating

Differentiator: Targeting diverse special-shaped tunnel environments:

Hydraulic tunnels: 85μm hot-dip galvanizing + 15μm anti-scaling epoxy coating (resists water erosion and sediment adhesion)

Mountain tunnels: 85μm hot-dip galvanizing + 12μm wear-resistant polyurethane coating (resists rock fragment impact)

Coastal special tunnels: 85μm hot-dip galvanizing + 15μm anti-salt epoxy coating (2000h salt-spray resistance)

Service life ≥7 years (200+ reuses)-30% longer than standard formworks (not adapted to special environments).

4. Modular Custom Assembly

Differentiator: Special-shaped sections are split into lightweight modular segments (single segment ≤50kg) with "shape-matched snap-locks":

Horseshoe: Split into 5-6 arc segments (easy to transport in narrow mountain tunnel entrances)

Oval: Split into 4-5 curved segments (fast to align and assemble)

3 workers can assemble 15m special-shaped tunnel formwork daily-30% faster than welding-connected custom formworks. Detachable design allows partial replacement of damaged segments (saves 50% maintenance cost vs. integral custom formworks).

5. Seamless Joint Sealing

Differentiator: Special-shaped joints are prone to leakage, so we use "shape-adaptive rubber strips + double-sided waterproof mortar":

Arched tunnels: Arc-shaped rubber strips (matches arch curvature)

Horseshoe tunnels: L-shaped rubber strips (seals arch-shoulder joints)

Leakage rate ≤0.2% (vs. 5% for modified standard formworks). In a 10km hydraulic oval tunnel project, this design saved $200,000 waterproof repair cost.

1. Mountain Horseshoe Tunnel

A 8km mountain tunnel (horseshoe section: 5m width/4.5m height) needed to adapt to uneven surrounding rock stress. Our custom formwork's variable-thickness ribs withstood 85kN/m² local pressure-no deformation. Modular segments fit 2.8m narrow tunnel entrances, saving $15,000 crane rental. 200+ reuses covered 2 mountain projects.

2. Hydraulic Oval Tunnel

A 12km hydraulic tunnel (oval section: 6m long-axis/3.5m short-axis) required water flow optimization. Our oval custom formwork's anti-scaling coating reduced sediment adhesion by 60%; 40kN/m² water pressure resistance ensured structural safety. ±3mm precision matched design drawings, avoiding $30,000 rework.

3. Underground Heritage Arched Tunnel

An underground heritage protection project (arched section: 4m span/3m height) needed to preserve historical space. Our 3D-scanned custom arched formwork achieved ±2mm precision-no damage to heritage structures. Wear-resistant coating resisted tourist foot traffic impact, service life extended to 8 years.

1. Installation Steps

Step 1: 3D scan tunnel base → mark positioning points (error ≤1mm)

Step 2: Assemble modular segments via shape-matched snap-locks (verify with 3D laser level)

Step 3: Install shape-adaptive rubber strips → seal with double-sided waterproof mortar

Step 4: Apply environment-specific release agent → pour C30-C60 concrete (layer height ≤400mm for complex shapes)

2. Maintenance Tips

Hydraulic tunnels: Monthly clean coating surface (remove sediment) → check anti-scaling coating integrity

Mountain tunnels: Weekly inspect segments for impact damage → replace worn snap-locks

Coastal tunnels: Quarterly check anti-salt coating → touch up scratches with matching paint

1. Why not use modified standard formworks for special-shaped tunnels?

Modified formworks have mismatched stress distribution (e.g., rectangular panels bent into arcs cause weak points) and high leakage risk (non-matching joints). Our custom formworks are 1:1 designed for special shapes-safer and more cost-effective long-term.

2. Is customization more expensive than standard formworks?

No-for orders over 50 sets, we waive mold costs; 200+ reuses reduce per-project cost to $2.5/sqm (only 15% higher than standard formworks). Modified standard formworks have 50% higher maintenance cost (frequent repairs) and shorter service life.

3. What's the minimum order quantity for customization?

10 sets (for small special projects like underground heritage tunnels). We provide flexible solutions: for orders <10 sets, we use universal modular components (reduce customization cost by 20%) while maintaining ±3mm precision.

Choose Shaanxi Flourish's Special-shaped Tunnel Steel Formwork-not modified standard formworks, but 1:1 custom solutions-for safe, efficient, and precise non-standard tunnel construction!
