Shaanxi Flourish Industrial Co., Ltd. has rich experience manufacturing ringlock scaffolding accessories with integrated automatic casting and hot-dip galvanizing workshops. Our Diagonal Brace Heads are one-piece ZG230-450 cast steel units fitted with 45# forged steel rivets and self-locking wedge pins, fully tested to EU EN12810 standards. Left and right swivel heads are always in stock for global shipment. Compared with cheap stamped alternatives, our diagonal heads deliver 40% higher pull resistance and longer anti-rust service life. Ideal for residential construction, bridge heavy shoring, temporary stages and tunnel support, we are a reliable manufacturer supplier for worldwide scaffolding traders, contractors and rental firms.
Product Introduction and Simple Installation Guide
-
Diagonal Brace
Simple Installation Guide:
1.Insert the swivel head into the large diagonal hole of ringlock rosette;
2.Adjust diagonal brace angle freely via hinged rivet for full contact;
3.Hammer wedge pin down to the marked locking line;
4.Double-check all pins before construction;
5.Tap pin upward to unlock during dismantling.
Tip: Install X-shaped diagonal braces every 1.5–2m vertically to boost lateral stability.

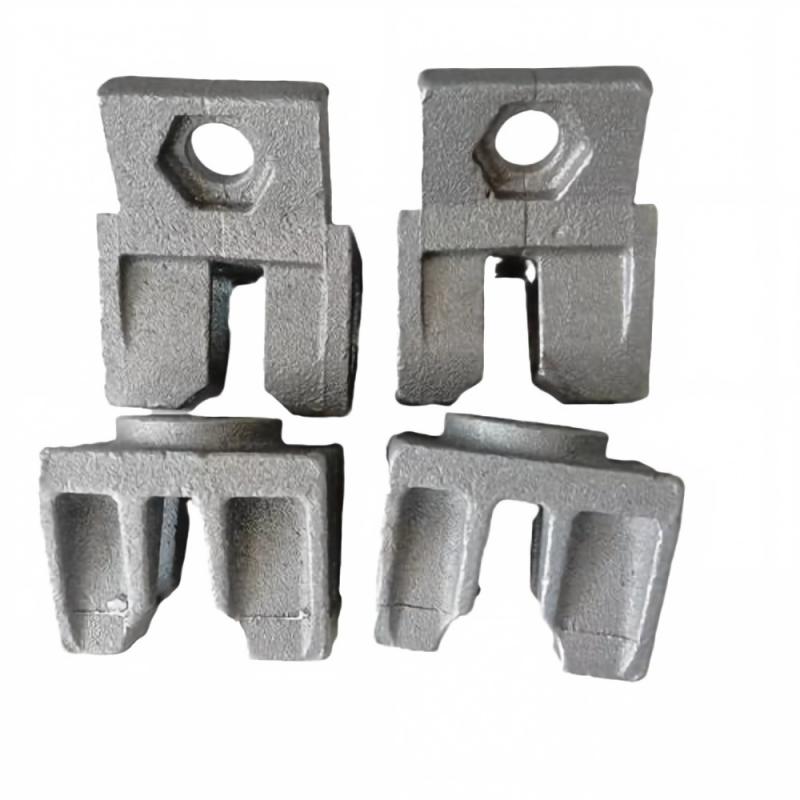

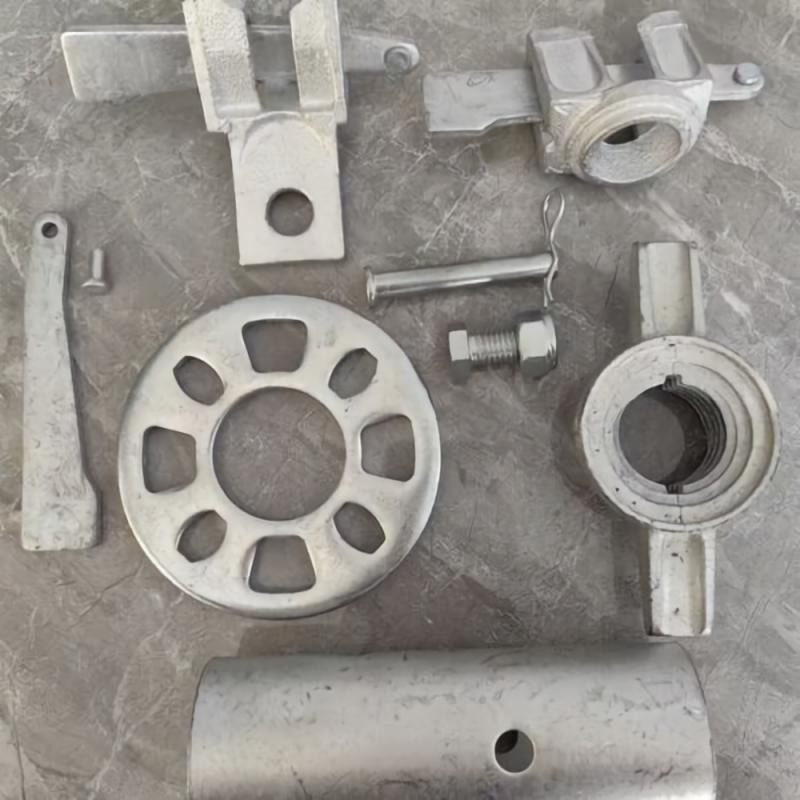

Diagonal Brace Head (also named Swivel Wedge Head / Diagonal End) is welded to both ends of ringlock diagonal braces. Its hinged rivet allows multi-angle rotation to fit the large diagonal holes on ringlock rosettes. Hammer the integrated wedge pin for self-locking, forming a stable triangular structure to stop scaffold swaying and overturning.
Core Product Advantages
6 Core Product Advantages

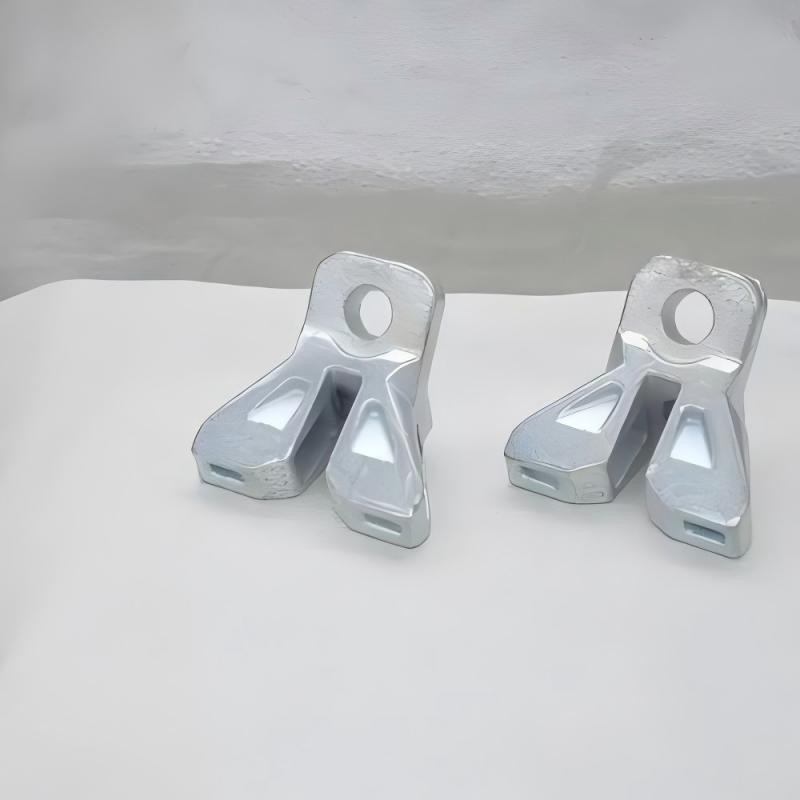

Solid Cast Steel Structure
Integral ZG230-450 casting with flaw detection; thicker wall resists cracking and deformation, pull-out force ≥3kN.
Smooth Swivel Rivet Design
45# solid forged rivet enables free angle adjustment, fits 48.3mm & 60.3mm ringlock tubes and cuts installation labor.
Anti-drop Self-locking Wedge Pin
Built-in limit hook prevents pin loss; scale marks on pins for easy on-site safety inspection.
HDG Anti-corrosion Finish
Full hot dip galvanization (zinc ≥65μm), suitable for coastal, rainy and cold regions, extends accessory turnover cycles.
Large Production & Fast Delivery
Monthly output over 500,000 pieces; ready stock for full-container orders. OEM logo, size and galvanization customization available.
Complete Global Certifications
EN12810 load reports & material certificates provided for smooth customs clearance and international project bidding.
| Item | Standard Spec | Custom Options |
| Model | Left / Right Diagonal Brace Head | Match 48.3 / 60.3mm tubes |
| Main Material | ZG230-450 Cast Steel | Q345 high-strength cast steel |
| Fastener Material | 45# Forged Steel | Thickened wear-resistant steel |
| Surface Treatment | Hot Dip Galvanized | Electro-galvanized / painted |
| Pull-out Capacity | ≥3kN | Heavy-duty reinforced ≥4.5kN |
| Matching Part | 8-hole ringlock rosette | Compatible with Layher system |
| MOQ | 100pcs stock order | Bulk container discount |
| Extra Service | Separated left-right packaging | Custom drawings, third-party testing |
Acceptance and Scrap Rules
Qualified Standard
No cracks, distortion or massive galvanized layer peeling;
Rivet tight, head rotates smoothly without jamming;
Wedge pin locks firmly and won't pop out automatically;
Full welding between tube and head sleeve.
Scrap and Forbidden Use
Cracked, deformed or broken cast steel body;
Loose/missing hinged rivet;
Damaged or lost wedge pin;
Severe rust with thin wall thickness.
Cooperation and Service
FAQ
faq
Q:1.What is the difference between Diagonal Brace Head and Ledger Head?
A:Diagonal Brace Head is swivel-type for diagonal braces to fit large rosette holes; Ledger Head is fixed non-rotating for horizontal ledgers, they are not interchangeable.
Q:2.Do you supply both left and right diagonal heads?
A:Yes, we keep full stock of left & right swivel diagonal brace heads and support mixed container packing.
Q:3.Can I customize galvanization thickness and print my brand logo?
A:OEM service is fully supported, including customized zinc layer thickness, engraved or printed customer logos and personalized carton packages.
Q:4.What certificates can you provide for overseas projects?
A:Each batch comes with EN12810 load test reports and material spectrum certificates, meeting EU, Australia, Middle East and Southeast Asia engineering standards.
Q:5.Are these swivel heads compatible with Layher ringlock system?
A:Yes, our Diagonal Brace Head fits standard Layher-style 8-hole ringlock rosettes and 48.3/60.3mm scaffolding tubes.
Q:6.What's the warranty period for diagonal brace heads?
A:We offer a 2-year factory warranty. Any factory-caused damaged goods will be re-delivered free of charge.
