Shaanxi Flourish Industrial Co., Ltd. is an experienced professional manufacturer of construction scaffolding with complete standardized stamping, automatic welding and integrated coating production lines. We specialize in producing high-load, fully compliant door frame scaffold main frames, and supply a full set of matching accessories including cross braces, steel planks, connecting pins and adjustable base jacks in one-stop service. All our products have passed EN12811 and AS/NZS1576 international safety certifications, and customized sizes, surface treatments and colors are available. Our monthly output reaches 5 million sets to guarantee stable delivery for mass overseas construction orders. We help global buyers avoid common overseas procurement troubles such as middleman markup, missing accessories, incomplete certifications and transit damage, providing cost-effective and long-term stable supply solutions for building material wholesalers, general contractors and scaffolding rental companies worldwide.
Product Introduction

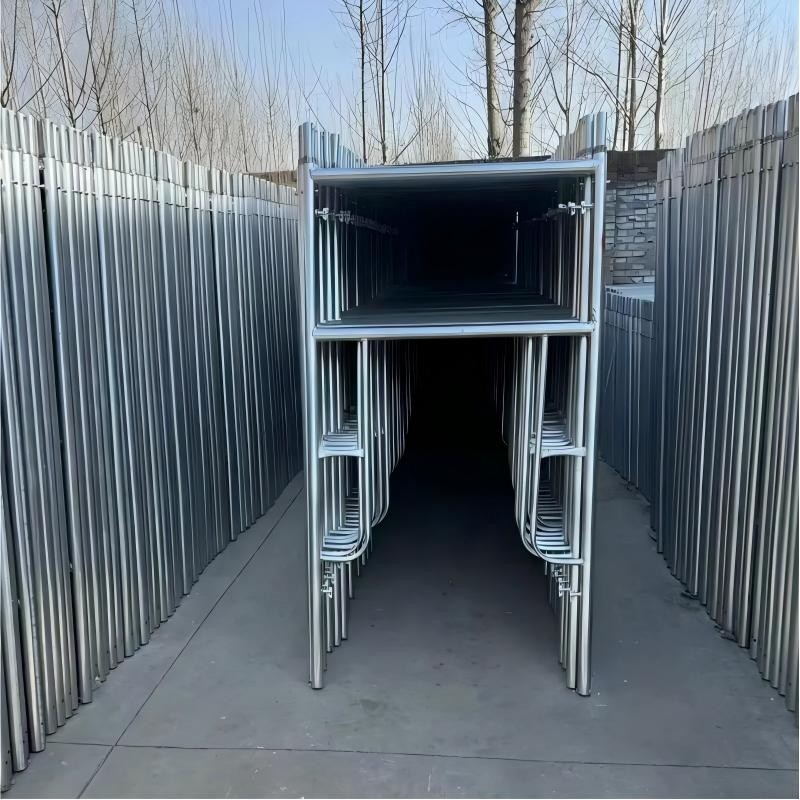

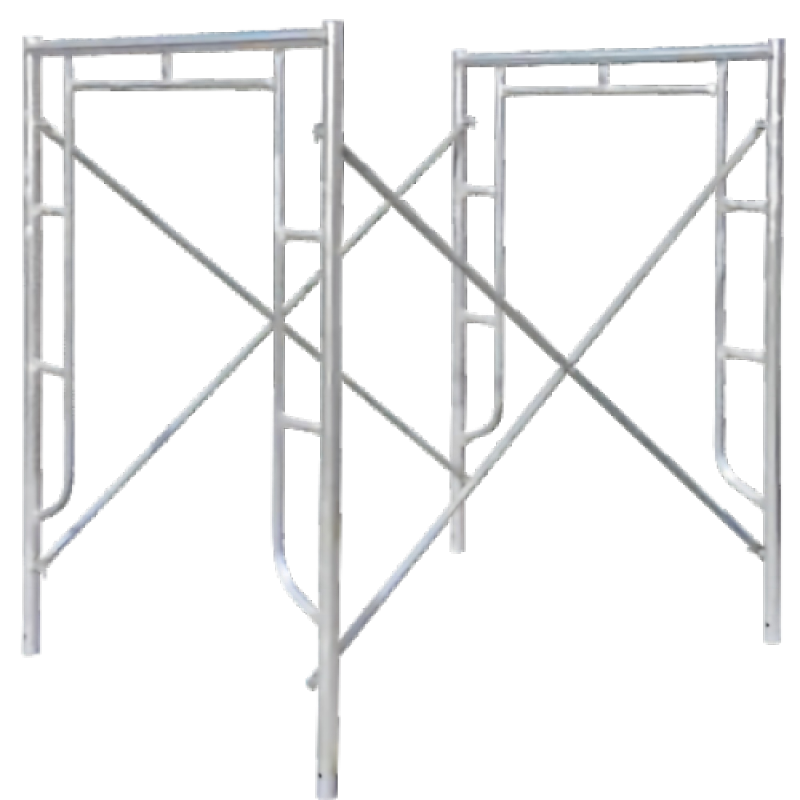

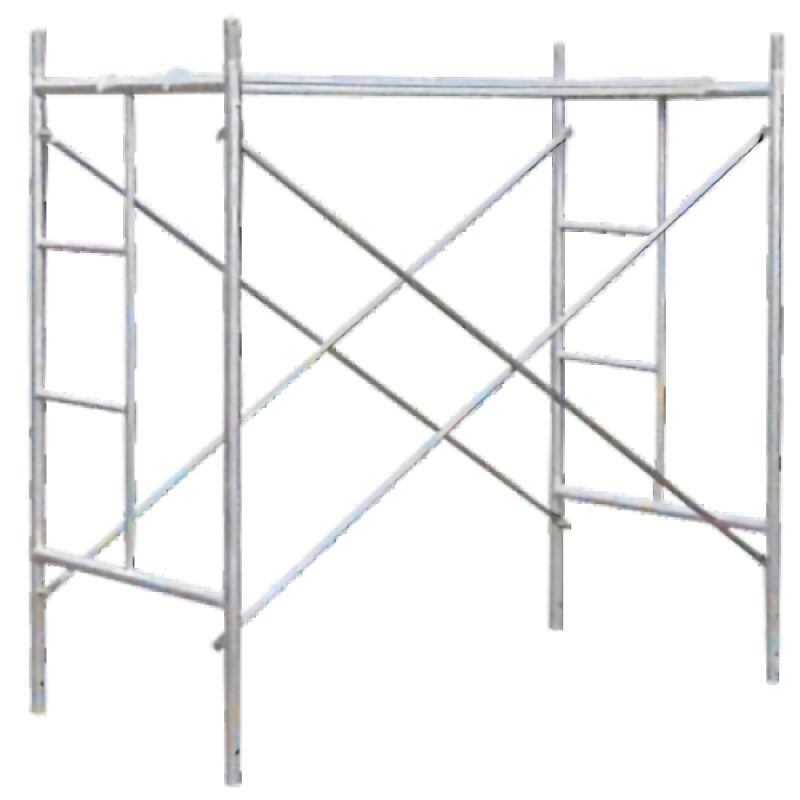

Door Frame Scaffold, also known as H Frame Scaffold, is the mainstream modular main frame of scaffolding for exterior wall construction, interior decoration, factory renovation and mobile working platforms. It is integrally welded with two vertical standards, top & bottom ledgers and middle reinforcing bars. Matching with cross braces and steel planks, multi-layer working platforms can be erected rapidly.
We produce two mainstream types of door frames to fit various overseas construction scenarios:
Ladder Door Frame
Core Product Advantages
6 Core Competitive Advantages to Eliminate Your Scaffolding Procurement Headaches
Material & Load Safety
Q235 high-strength tubes, 1.5/1.8/2.0mm thick wall
Platform load ≥2.0kN/㎡, anti-deformation under heavy use
Full load test reports, pass EU & AU site inspection
Multi Anti-rust Coatings
Powder coating: multi-color, dry indoor sites
Hot-dip galvanized: 8–10 years rust resistance for coastal areas
Double pre-galvanized layer: ideal for rental fleet frequent turnover
Fast Modular Installation
Single worker 3-min assembly without special tools
Tight snap fit, easy stacking & high container loading rate
Greatly cut labor & ocean logistics cost
Complete Matching Accessories
Full set: braces, planks, jacks, casters, guard rails & pins
One-container unified packing, no split & missing parts
One-stop purchase to save your procurement energy
Global Standard Certifications
EN12811 & AS/NZS1576 certified
Material, load & origin documents included
Trouble-free customs clearance & third-party audit
Custom Sizes & Stable Shipment
Regular & non-standard customized frame sizes
5 million sets monthly production capacity
Stock 7-day delivery; bulk orders within 30 days
| Item | Standard Configuration | Customizable Options |
| Product Name | Door Frame Scaffold Main Frame | Walk-thru Frame / Ladder Frame |
| Tube Material | Q235 Low Carbon Steel | Q195 Economy Grade / Q355 Heavy-duty Grade |
| Regular Size | 1219mm Width × 1930mm Height | 0.75m/1.5m Width, 1.7m/2.0m Height |
| Tube Wall Thickness | 1.7mm Standard | 1.5mm Economy / 2.0mm Heavy Construction |
| Surface Finish | Blue Electrostatic Powder Coating | Hot-dip Galvanized, Pre-galvanized, Multi-color Paint |
| Rated Load Capacity | ≥200kg/㎡ | Heavy-duty version up to 300kg/㎡ |
| Matching Accessories | Cross Braces, Steel Planks, Pins, Base Jacks | Casters, Guardrails, Full Stair Set |
| Warranty | 2-year welding structure warranty | Extended warranty for long-term bulk clients |
| Applicable Standards | EN12811, GB15831 | AS/NZS1576, North America OSHA Standard |
Application Scenarios
Cooperation & Procurement Services
FAQ
faq
Q:1.Are Door Frame Scaffold and H Frame Scaffold the same product?
A:They refer to the same type of portal scaffolding with different regional naming habits. We produce both versions with universal specifications.
Q:2.Can door frames without EN certification be exported to EU countries?
A:They cannot pass customs clearance and on-site safety inspection. All our door frames are equipped with standard EN12811 certification without extra third-party testing.
Q:3.Can door frames be fitted with casters to form mobile scaffolding?
A:Yes. Install brake universal casters and adjustable base jacks to assemble mobile working platforms, widely used for interior decoration.
Q:4.How long is the lead time for small-batch orders?
A:In-stock standard sizes load within 7 days; customized sizes take 15–30 days, adjustable production schedule based on your project timeline.
A:Basic package: 2 pcs main frames + 2 pcs cross braces + 1 pc steel plank. Base jacks, connecting pins and guardrails are optional extra accessories.
One-stop Cosmetic Tube Factory in China
If you need detailed FOB quotation sheets, complete technical drawings and real sample videos of door frame scaffold, please fill in the online inquiry form with your purchase quantity, target market and size requirements. Our foreign trade sales manager will send full product materials and accurate quotations within 24 hours. Factory visits are warmly welcomed. We sincerely invite global building material buyers to negotiate long-term stable supply cooperation.
