Shaanxi Flourish Industrial Co., Ltd. is an experienced professional exporter specializing in the R&D, production and global supply of ringlock scaffolding accessories. Equipped with standardized casting workshops and an independent mechanical testing laboratory, we adopt self-developed vertical split integral casting technology to manufacture high-quality Ringlock Ledger Head, effectively eliminating common safety defects such as cracks and sand holes caused by traditional horizontal casting. All our products have passed multiple international construction safety certifications including EN74, BS1139 and SGS. With a stable monthly output of 6,000 tons and sufficient in-stock supplies, we support both hot-dip galvanized and painted finishes as well as full-spec customization. Delivering excellent load-bearing capacity, long-term corrosion resistance and efficient installation performance, we provide one-stop, cost-effective and fully compliant core connection solutions for global general contractors, building material traders and scaffolding rental enterprises.
Core Product Advantages
Built with premium vertical split casting instead of traditional horizontal molding, our ledger head eliminates internal pores, sand holes and structural stress defects. Tensile strength is improved by 40%, delivering reliable stability for high-rise and heavy-load construction. It effectively prevents structural fracture and collapse, minimizing site safety risks and project loss.
Made of standard ZG230-450 cast steel with optional Q345 alloy steel, this ledger head complies with international heavy-duty construction standards for bridges, factories and large infrastructure. Its thickened clamping surface forms a stable 3-point locking system with ringlock rosettes, ensuring tight connection and zero structural displacement under long working loads.

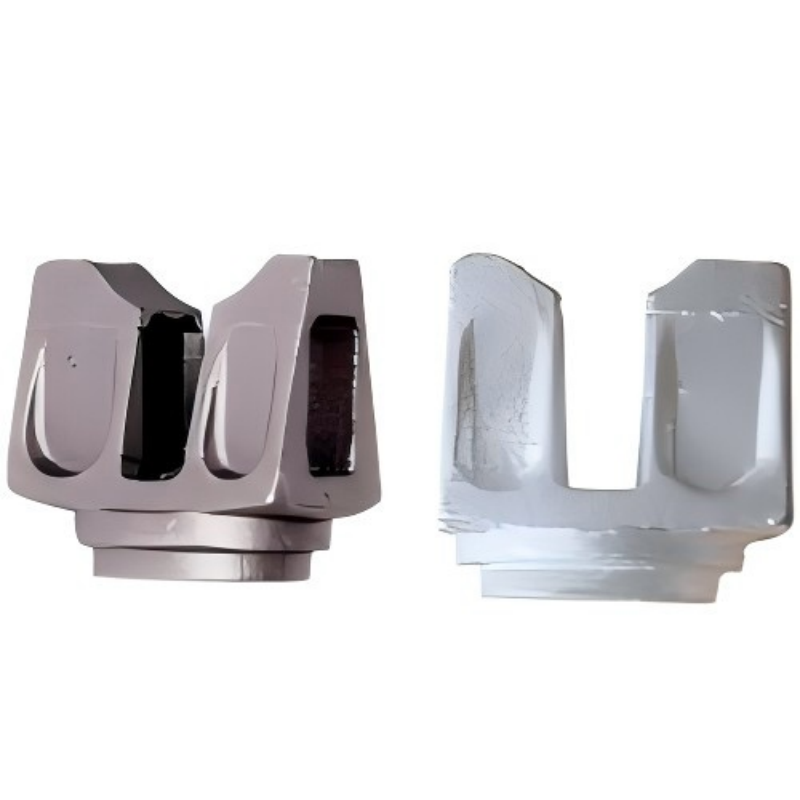

Two cost-effective surface finishes are available for diverse working conditions. Hot-dip galvanized treatment provides 8–10 years of anti-corrosion performance for coastal and humid sites, while black painted finish suits short-term rental and temporary projects. Both versions exceed ordinary sprayed scaffolding parts in durability by 30%.
Our standard ledger head universally fits 48mm scaffolding tubes and global 8-hole ringlock rosette systems, compatible with 0.15m–3.07m full-size ledgers. Custom size, weight and logo engraving services are supported, perfectly matching most ringlock systems without replacing existing scaffolding inventory.
As a direct integrated manufacturer, we eliminate middleman markup and offer competitive factory pricing with tiered bulk discounts. In-stock supply supports low MOQ and fast delivery. We provide free samples, official test reports and 2-year warranty, plus flexible TT/LC payment terms for global buyers.
| Parameter Item | Standard Specification | Customizable Options |
| Product Name |
Ringlock Ledger Head |
Custom Special Interface Ledger Head |
| Raw Material |
ZG230-450 Cast Steel |
Q345 High-Strength Alloy Steel |
| Unit Weight |
0.28kg / 0.48kg / 0.58kg |
Custom Weight by Wall Thickness Adjustment |
| Compatible Tube Size |
Φ48mm Standard Scaffolding Tube |
Φ42mm / Φ60mm Non-Standard Tube |
| Surface Treatment |
Black Painting, Hot-Dip Galvanizing |
Electro-Galvanizing, Custom Spraying |
| Production Technology |
Vertical Split Precision Integral Casting |
Custom Forging Process |
| Certification |
EN74, BS1139, SGS, AS1576 |
Local Country Standard Test Certificates |
Product Structure & Installation Principle

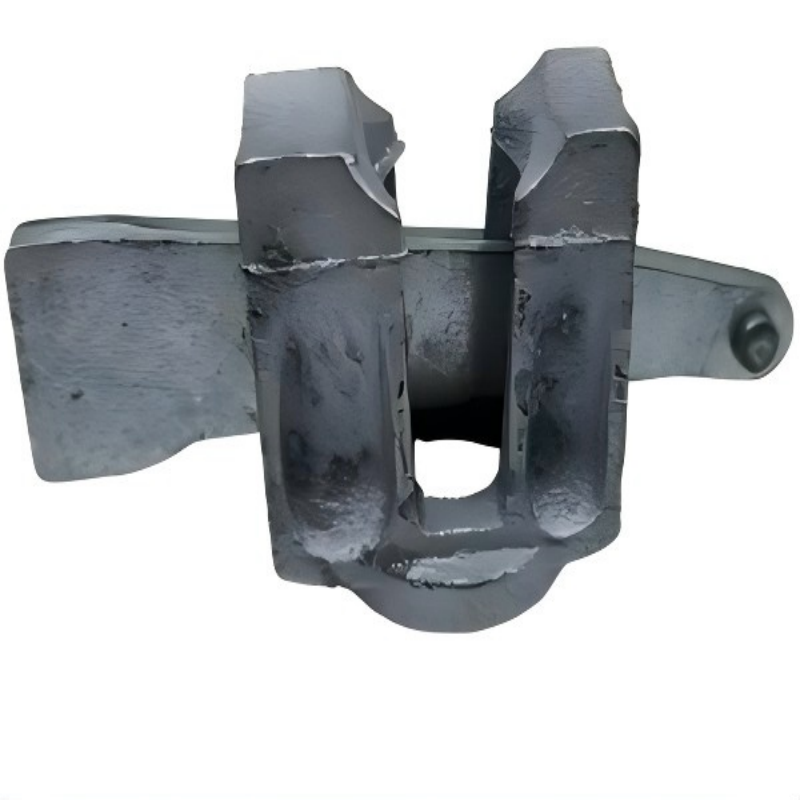

Ringlock Ledger Head is the core connecting component installed at both ends of ringlock scaffolding ledgers. Adopting an integrated double-card slot design, it is firmly welded to the two ends of ledger tubes. During construction, simply align the ledger head slot with the reserved hole of the vertical pole rosette and insert the matching wedge for rapid locking. The optimized three-point force-bearing structure disperses vertical and horizontal loads effectively. No professional tools are required for assembly and disassembly, enabling single-person operation, greatly shortening construction cycles and reducing labor costs.
Wide Application Scenarios
Civil Construction
Exterior wall scaffolding and interior formwork support for high-rise residential buildings
Infrastructure Projects
Heavy-duty formwork support for bridges, viaducts and tunnels
Industrial Engineering
Operation platforms for factories, power plants and petrochemical maintenance
Temporary Facilities
Stage support, exhibition platform and municipal fence scaffolding
Frequently Asked Questions
faq
Q:1.Can your ledger head match ordinary ringlock rosettes on the market?
A:Our standard ledger head is universally compatible with global standard 8-hole rosettes and 48mm scaffolding tubes. Custom solutions are available for non-standard rosettes and tubes to achieve a perfect fit.
Q:2.Can you provide free samples for testing? How about the sample cost?
A:We offer 3-5 free product samples. Customers only bear the freight cost, which can be deducted from subsequent bulk orders.
Q:3.Can you provide complete customs clearance documents and certification files for export?
A:We can provide full sets of customs clearance materials including CE, SGS, material certificates, factory test reports, packing lists and commercial invoices, meeting the import standards of Europe, America, Southeast Asia, the Middle East and other regions.
Q:4.Are there bulk discount prices? What payment terms are available?
A:Tiered preferential prices are offered for orders over 10 tons. Flexible payment terms include 30% deposit + balance against B/L copy and 100% LC letter of credit.
One-stop Scaffolding Accessories Manufacturer Based in China
Feel free to send us messages or emails to obtain the latest Ringlock Ledger Head quotation, official load test reports and factory audit materials. Please inform us of your purchase quantity, target port and surface treatment requirements. Our professional foreign trade team will provide customized procurement solutions within 12 hours. We sincerely welcome long-term strategic cooperation with global engineering contractors and building material distributors.
