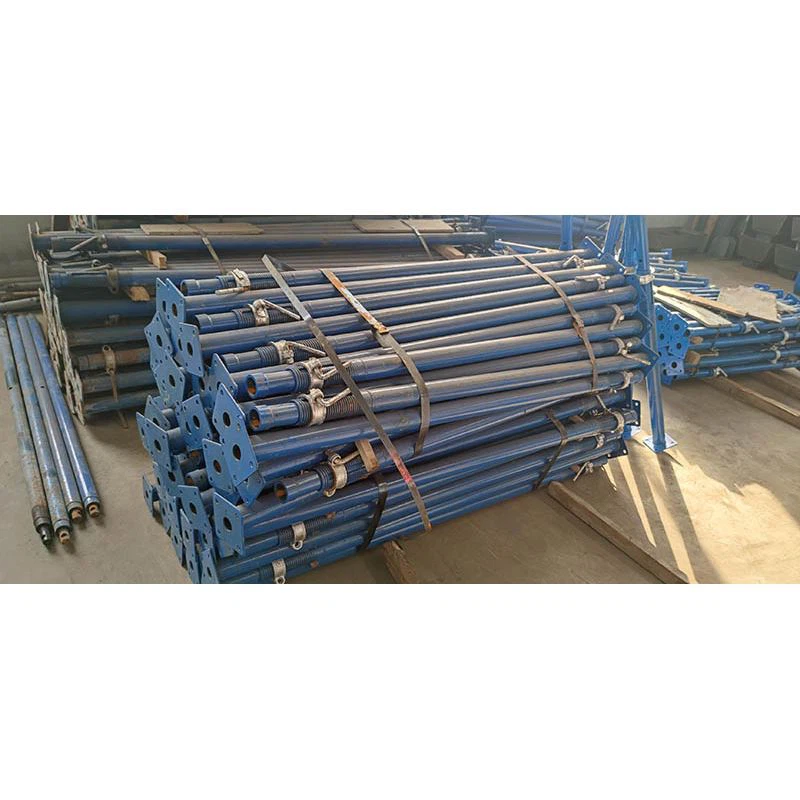

Formwork Props are high-strength, adjustable support systems engineered for temporary shoring in concrete construction. Designed for reliability and efficiency, these props deliver robust vertical support to formwork during slab, beam, and column casting. Ideal for residential, commercial, and industrial projects, they ensure structural integrity while optimizing labor and time.
Key Features
1. Heavy-Duty Load Capacity
◦ Supports up to 20 tons per prop (model-dependent) with a 2:1 safety factor.
◦ Reinforced steel construction (Grade S355JR) prevents deformation under extreme loads.
2. Precision Height Adjustment
◦ Telescopic design with 1.5–4.2m adjustable range (custom ranges available).
◦ Dual screw-jack mechanism enables ±150mm micro-adjustment for perfect alignment.
3. Rapid Assembly & Portability
◦ Tool-free pin-and-clip system allows setup in under 60 seconds.
◦ Lightweight (15–25kg) with ergonomic handles for effortless transport.
4. Enhanced Safety & Stability
◦ Non-slip base plates with anchor holes for secure bolting.
◦ Integrated locking collars to prevent accidental collapse.
◦ Complies with EN 1065, AS 3610, and OSHA standards.
5. Durable Corrosion Resistance
◦ Hot-dip galvanized finish (optional epoxy coating) for harsh sites.
◦ UV-resistant materials ensure longevity in outdoor environments.

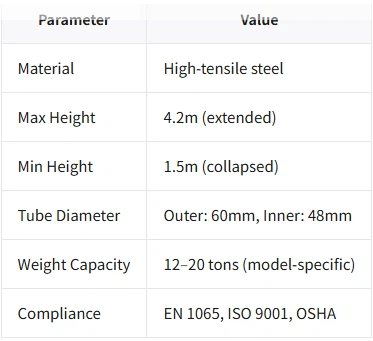

Technical Specifications
Applications
• Slab Formwork: Support suspended concrete floors and decks.
• Beam/Column Shoring: Stabilize vertical/horizontal formwork.
• Infrastructure Projects: Bridges, tunnels, and heavy-duty variable-height applications.
• Renovations: Temporary structural reinforcement during retrofits.
Why Choose FLRS?
• Cost-Efficient: Reusable design reduces rental/repurchase costs by 30%.
• Universal Compatibility: Integrates with all major formwork systems (e.g., PERI, Doka).
• Eco-Conscious: 100% recyclable materials with a 10-year service life.
Safety Notes
• Always deploy base plates on stable, level surfaces.
• Never exceed rated load capacities.
• Conduct pre-use inspections for damage or wear.
