Why Basement Walls Are the Toughest Formwork Job on Site
Most contractors have poured above-ground walls dozens of times. Basement walls are a different animal.
You are fighting three battles at once: lateral earth pressure pushing in from the outside, groundwater or hydrostatic pressure trying to find every seam, and strict waterproofing requirements because the wall is below grade and nearly impossible to repair once backfilled. Add tight site access, limited working room inside the excavation, and the fact that any defect will stay hidden for years, and it becomes clear why basement wall formwork demands more planning than almost any other vertical pour.
Formwork System Selection: Steel, Aluminum, or Hybrid?
Steel Wall Formwork
Steel panels remain the default choice for basement walls on mid-to-large projects, and for good reason. A standard 3 mm steel face sheet gives you the rigidity to resist concrete pressures up to 80–100 kN/m² without noticeable deflection, depending on the waling spacing. The smooth steel surface also produces a dense concrete face, which is your first line of defense against water ingress.
The downside is weight. A full-size steel panel can weigh 60–90 kg, which limits how fast crews can set and strip in a confined basement excavation. For sites where crane access is tight, consider steel wall formwork with lighter frame sections or smaller panel modules.
Aluminum Wall Formwork
Aluminum panels cut the weight by roughly 50–60 % compared to steel. On a 3 m-high basement wall with repetitive pours, that difference adds up quickly. The downside is lower panel stiffness. Aluminum formwork typically runs 4 mm face sheets with reinforced edges, and you will need tighter waling spacing-often 600–800 mm centers versus 1.0–1.2 m for steel-to keep deflection within acceptable limits.
Aluminum also has an edge on corrosion resistance in damp environments. The natural oxide layer holds up well in typical groundwater conditions, though aggressive soils with high chloride or sulfate content can still attack it over time.
Hybrid and Custom Configurations
Some contractors run steel panels for the first 1.5–2.0 m (the zone of highest lateral pressure and most critical waterproofing) and switch to aluminum above that line to speed up the upper lifts. This is not a factory-standard system, but experienced formwork engineers can design it on a project-by-project basis.
Waterproofing Details That Matter
Tie-Rod Water Stop Systems

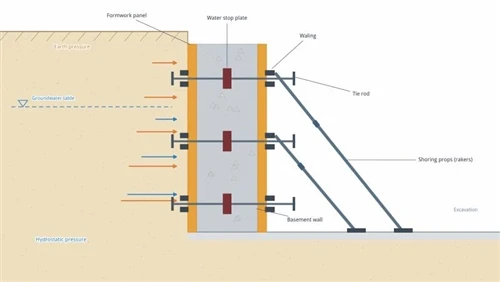

Every tie rod that passes through a basement wall is a potential leak path. There are two proven approaches:
Steel water stop plates welded to the tie rod at mid-wall depth. These create a physical barrier that forces water to follow a longer path around the plate. Plate dimensions and thickness vary by manufacturer; factory confirmation required for the exact spec that matches your wall thickness and hydrostatic head.
Rubber or PVC water stop rings fitted over the tie rod and compressed against the concrete during pouring. These are lighter and easier to handle on site, but their long-term performance depends heavily on installation quality-any void or misalignment around the ring becomes a leak risk.
Whichever system you use, the spacing of tie rods matters. For a 300 mm-thick basement wall under typical soil and groundwater conditions, a grid of 600 mm horizontal by 750 mm vertical is common. Deeper basements or poor soil may push that to 500 × 600 mm. Our formwork tie rod range includes threaded and smooth options with matching water stop accessories.
Construction Joint Treatment
Basement walls are rarely poured in one continuous lift. Every horizontal construction joint is another waterproofing risk.
The formwork design must leave a clean, roughened joint surface at each lift break. Water stop bands-typically PVC or rubber-should be placed at the joint line before the next pour. The formwork panels for the upper lift must seat tightly against the lower concrete face to prevent grout loss and void formation.
Vertical joints between formwork panels also need attention. Standard panel clamping systems with rubber gaskets work for most conditions, but on water-retaining basement walls, some specifiers require an additional bituminous coating or sealing tape at the panel interfaces.
Load Calculations and Bracing
What Loads Are You Actually Fighting?
Basement wall formwork must resist two distinct loads acting simultaneously:
- Concrete lateral pressure during pouring. For normal-weight concrete poured at moderate rates (up to 5 m/hr), the maximum hydrostatic pressure at the base of a 3 m wall is approximately 72 kN/m². Higher pour rates, warmer temperatures, or self-compacting concrete can push this higher.
- External earth and groundwater pressure before the concrete gains sufficient strength. If you pour against an existing excavation face or a temporary sheet-pile wall, the formwork on the outside face may see active earth pressure plus hydrostatic pressure from groundwater. In clay soils, the combined pressure can reach 40–60 kN/m² at depth.
These two loads do not always peak at the same time, but the formwork design must handle the worst-case combination. When in doubt, consult a structural engineer and specify your steel waling system accordingly.
Single-Sided vs. Double-Sided Formwork
Double-sided is the standard when you have working room on both sides of the wall. The two formwork faces support each other through tie rods, creating a self-bracing box that is efficient and straightforward to install.
Single-sided becomes necessary when the basement wall is poured against a permanent structure, a rock face, or a sheet-pile wall. Here, all the concrete pressure must be resisted by bracing on the open side only. This typically means heavier walings, closer tie-rod spacing, and a full external bracing frame of shoring props and rakers set at 45–60° angles back to the ground slab or kicker.
Single-sided basement walls are the most demanding formwork configuration. Do not underestimate the bracing force: the total horizontal load on a 20 m-long, 3 m-high wall at 75 kN/m² is 4,500 kN. That load has to go somewhere, and "somewhere" is your prop and raker system.
Pouring and Stripping: Timing Decisions
Pour Sequence
Basement walls should be poured in lifts of 2.0–3.0 m maximum, depending on the concrete mix and ambient temperature. Taller lifts increase the maximum lateral pressure on the formwork and make vibration more difficult in the lower sections. A two-lift pour on a 5 m basement wall-3 m first, then 2 m after the initial set-is standard practice.
Keep the pour rate controlled. A sudden surge in concrete delivery that forces the crew to pour faster than planned can spike the lateral pressure beyond the formwork design capacity.
Concrete Pressure Control
Vibration is critical in basement walls because any honeycombing or voids near the formwork face become future leak paths. Use immersion vibrators with a penetration depth of at least 1.5 times the vibrator diameter, spaced at roughly 1.5 m centers. Do not let the vibrator touch the formwork face-it can damage the water stop details and cause grout segregation.
Stripping Time
The formwork should not be stripped until the concrete has gained enough strength to support itself and resist the external earth pressure. For ordinary Portland cement concrete at 20°C, this typically means:
- Formwork face sheets: 12–24 hours, minimum.
- Walers and braces: 48–72 hours, depending on backfill schedule.
- Full prop removal: Not before 7 days, and only if the backfill is delayed.
In cold weather or with slow-gain mixes, these times extend. A common mistake on basement sites is stripping braces too early to speed up the cycle, only to find the wall has deflected or cracked under earth pressure before the concrete reaches design strength.
Matching the System to Your Project
No single formwork system fits every basement. A 2.8 m-deep residential basement in sandy soil with no groundwater is a straightforward job. A 6 m-deep commercial basement in clay with a high water table is an entirely different challenge.
The key is to match your panel type, waling spacing, tie-rod grid, and bracing layout to the actual loads-not to the standard catalog layout. Our steel wall formwork and aluminum wall formwork ranges cover standard modular sizes, with custom panel dimensions and waling configurations available for demanding basement projects. The tie-rod and water stop accessories are engineered to match the panel systems, so the waterproofing details integrate cleanly without field improvisation.
If you are planning a basement pour and need help sizing the formwork for your soil conditions and wall geometry, get in touch. We can run the load calculations, propose a panel and bracing layout, and confirm the water stop details before you commit to the rental or purchase order.
